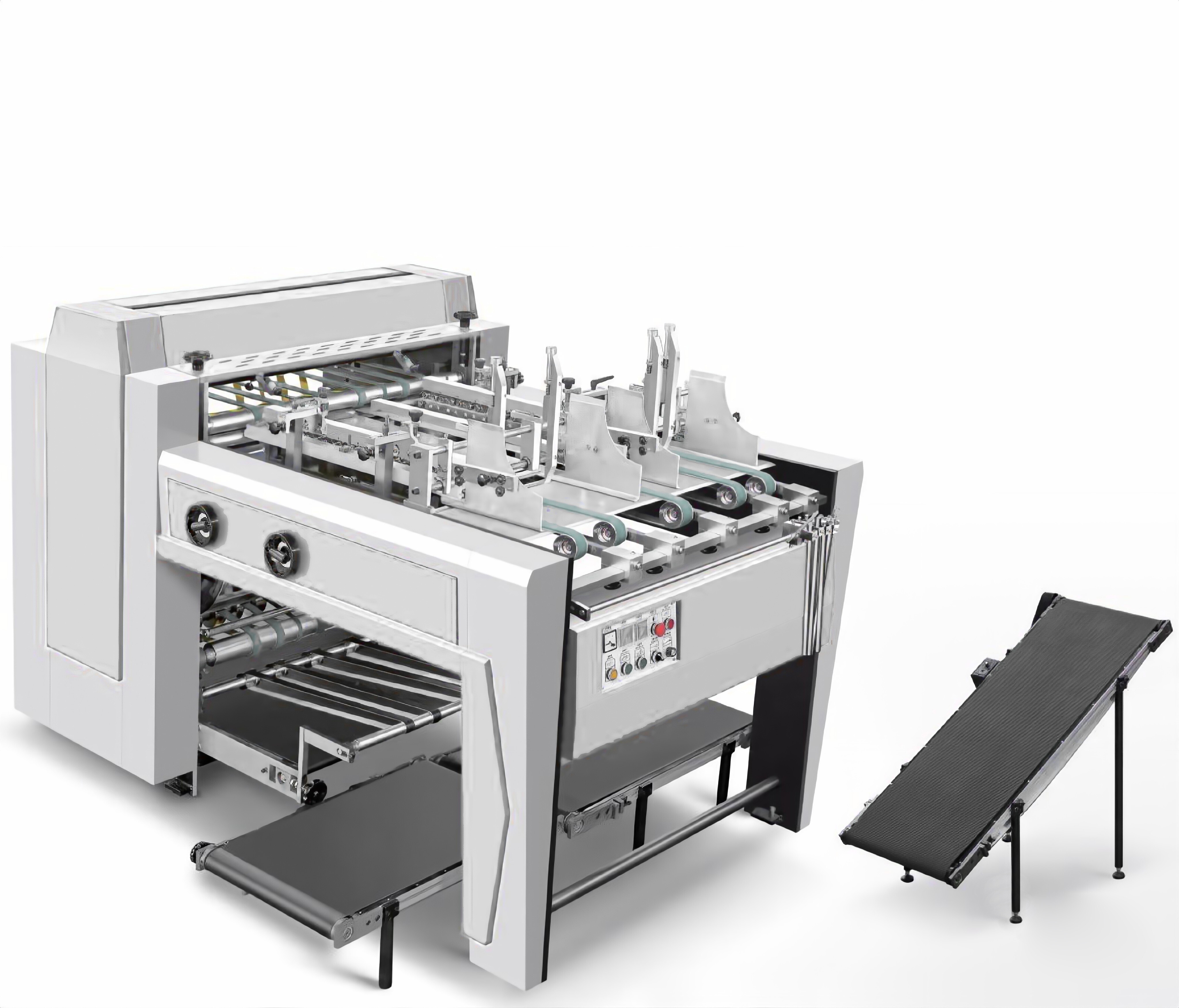

KC-1000AB Automatic Grooving Machine

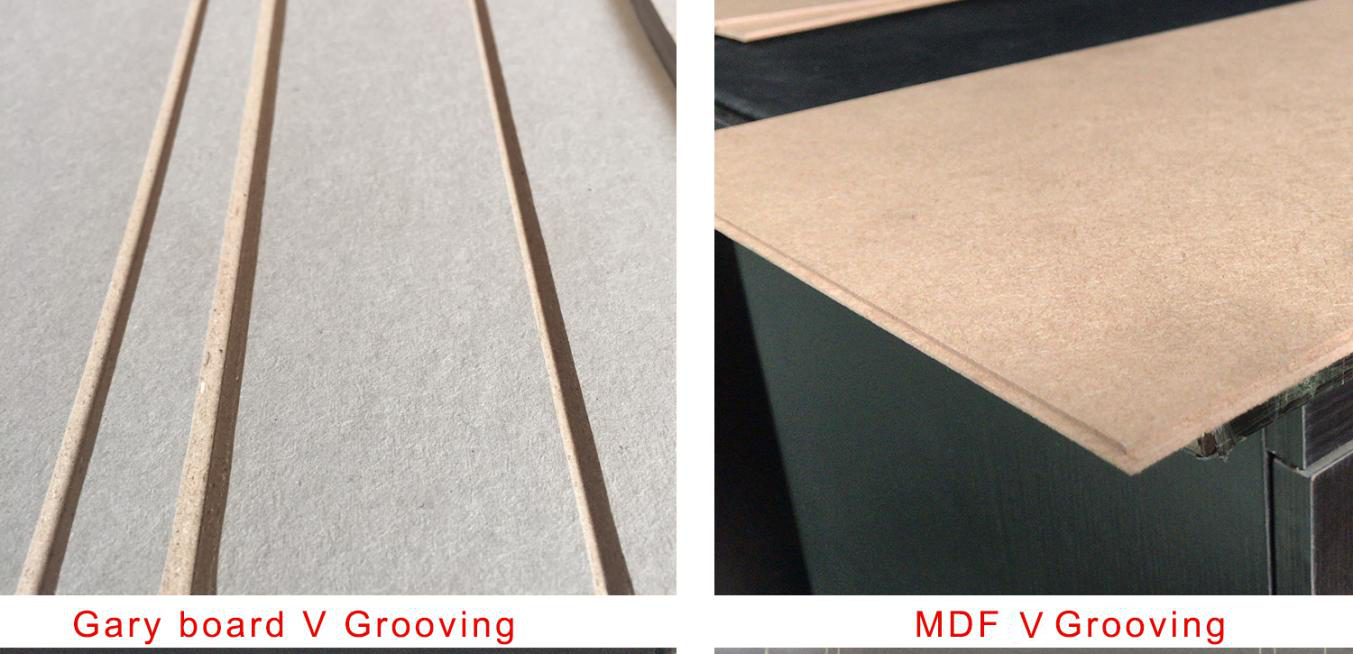

Grooving machine belongs to the gift box package production line equipment. The machine is special designed for notching V type groove, use for industry-cardboard, Ash-cardboard, MDF board and other several of cardboard, to make it suitable for box or other packaging products.

Used for High quality package, Gift Box, Jewelry boxes, Watch packaging, mobile phone boxes, wine boxes, Storage box, shirt and shoes boxes, make-up, toiletry boxes, biscuits and cakes boxes, note book cover, book shape boxes, hardcover, file folders, display, game boards, display stands, posters and calendars, etc.

It adopts new way of transportation principle, wrap the cardboard on the entire surface of the roller(The diameter is 60cm), which can guarantee the groove more accurately, straightly and no deviation. The machine has the features of high accuracy, fast speed and durable cutting blade.

PRODUCT DESCRIPTION


Feature


1. Automatic feeding, and available two working stations automatic feeding with the small size cardboard.

2. Original correction device,rectifying zero clearance smooth transition,easy to operate.

3. Double correct device, it can adjust according to the paper thickness and size.

4. Easy to adjust the grooving degrees and v groove effect smooth, with no dust.

5. Discard waste scrap(dust free),B model have conveyor belt,cardboard send to two sides

6. Counter records cardboard quantity


Specification

ModelKC1000AKC1000B
Width of Paper Board150-900mm150-900mm
Length of Paper Board150-600mm150-600mm
Groove Gap(between two grooves)2-800mm2-800mm
Thickness of paper Board300gsm-3.4mm300gsm-3.4mm
Knife angle80-140° Adjustable80-140° Adjustable
Roller diameter600mm600mm
Knife shapeV shape grooving V shape grooving
Number of Grooves9 pieces9 pieces
Grooving Speed30-40pcs/min30-40pcs/min
Power2.2kw2.2kw
Worktable station1 station/2 station  1 station/2 station
Voltage220V 2phase/380V 3phase220V 2phase/380V 3phase
Machine weight1500kg1550kg
Machine Dimension2300*1400*1500mm2300*1400*1500mm
Package Dimension2450*1600*1750mm2450*1600*1750mm


More Details

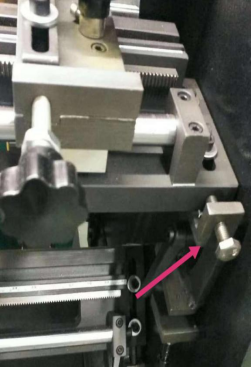

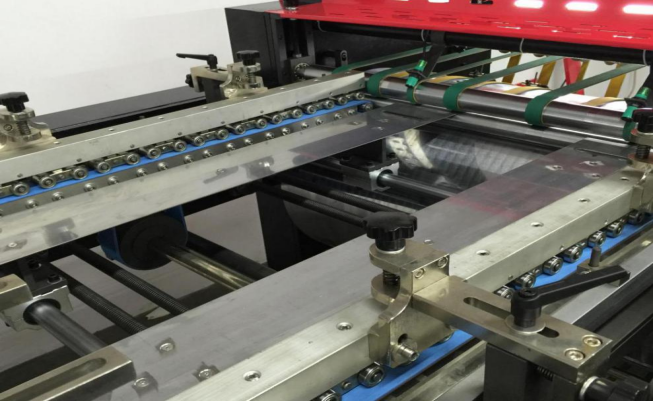

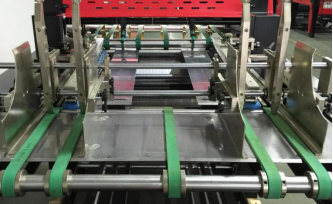

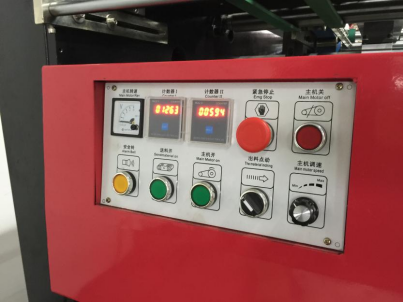

1.Operate plate and the control panel (Chinese and English)2. Automatic feeding part Cardboard carry by the convey belt, double sides position plate are adjustable3.The correction device. It will correct the direction of the cardboard.Correction by the plate support and auxiliary aluminum strip.

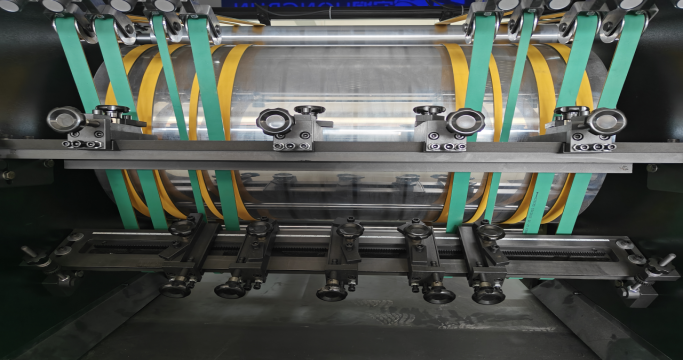

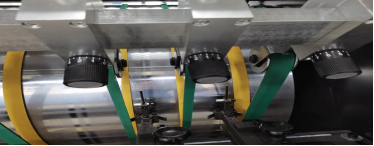

4.Cardboard grooving, belt transported to keep the cardboard on the large roller surface and knife make grooves. 5. Total 9 sets knife holders. Easy to adjust the degree and adjust range is 80-130 degrees. The grooving degree adjust by loosening the screws and swinging up and down knife holder.
1718244296659698155377868800.png1718244379659698501726728192.png1718244436659698739287912448.png

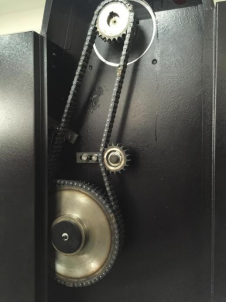

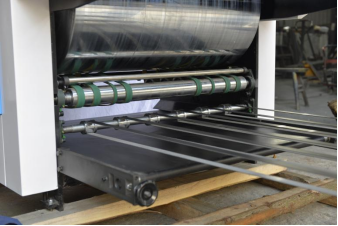

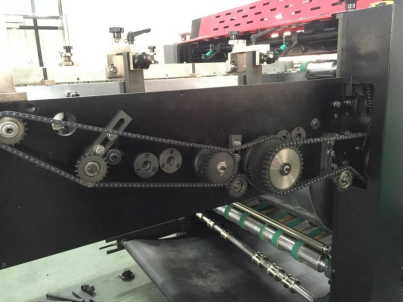

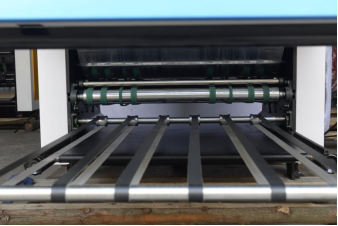

6. Output part. Finished grooving cardboard out by conveyor belt7. The whole transmission system has controlled by gear and chain, rather than belt transmission, which extends the service life of the whole equipment and improves the quality of the equipment.
1718244645659699619613589504.png1718244654659699656519270400.png1718244728659699964385378304.png1718244744659700033478148096.png

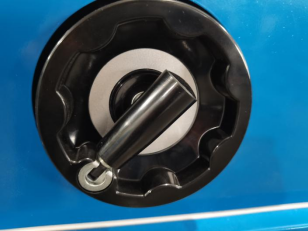

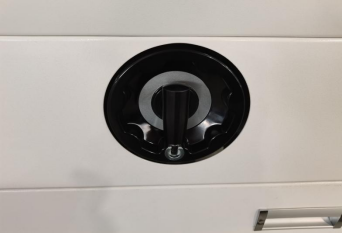

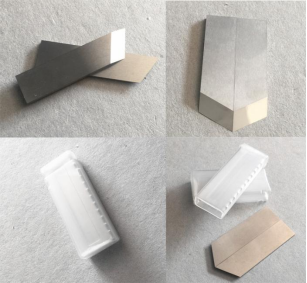

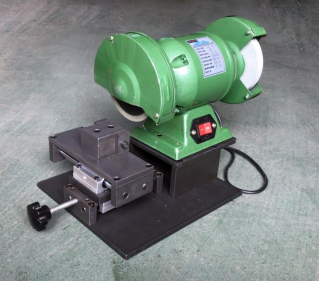

8. The imported alloy blade can be repeatedly sharpen and reused.Each machine is equipped with a sharpener. It will take only 2-5 minutes to sharpen the knife.9. It is more easy to adjustment the machine with different board size through Hand-Wheel.Not manual.
1718244849659700472646955008.png1718244854659700496189579264.png1718245003659701119010172928.png1718245047659701305690255360.png
