Dual Direction Automatic Cardboard Slitting Machine with Manual feeding
This machine is fully automatic cutting the big cardboard into small needed board, it is adopts manual feeding (if make big board size, need to feed by manual), this machine is fully automatic cutting the big board into needed small size board directly through 2 direction with 1 pass, and meanwhile automatically scrap discharge with high precision, high stability and simple adjustment.
15632711370
15632711370
info@fentimachine.com
CONTACT US
MESSAGE
PRODUCT DESCRIPTION

Instruction:

This machine is fully automatic cutting the big cardboard into small needed board, it is adopts manual feeding (if make big board size, need to feed by manual), this machine is fully automatic cutting the big board into needed small size board directly through 2 direction with 1 pass, and meanwhile automatically scrap discharge with high precision, high stability and simple adjustment.




Technical Parameters:

ModelDual Direction Automatic Cardboard Slitting Machine with Manual feeding
Original material size of 1st cutting stepMax size:1200*1150mmMin size:750*750mm
Original material size of 2nd cutting stepMax size:1150*450mmMin size:750*150mm
Finished product sizeMax size:450*600mm(L*W)Min size:150*85mm
Finished Product SizeW:85-600mmL:150-550mm
Min distance between 2 cutting blade:70mm
Thickness:1---4mm(1.0mm both can do, but the material quality is very important)
Speed70-100pcs/min(according to board size)
Adjust the cutting knifeAutomatic
Waste dischargeAutomatic
Normal Accuracy±0.1-0.15mm
Number of slitting knife7 or 8 set knives
Power380V/3 phase/50HZ

More Details:

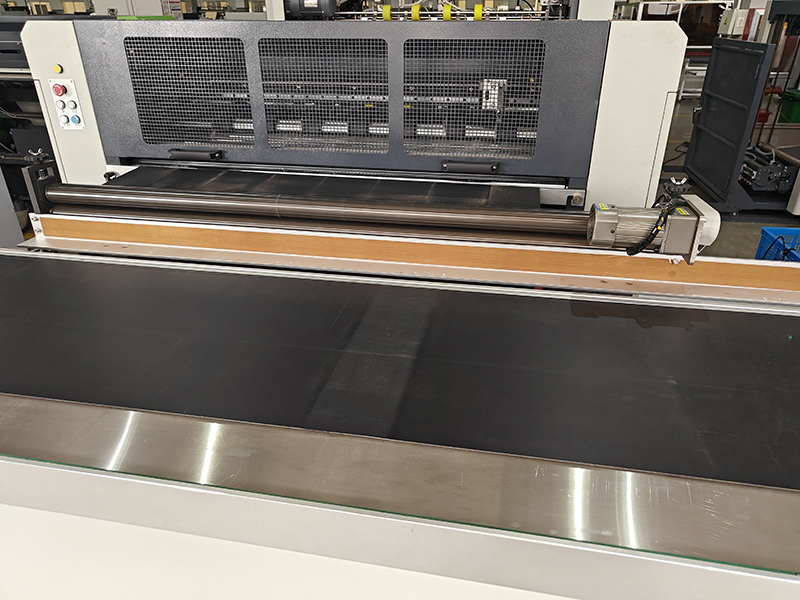

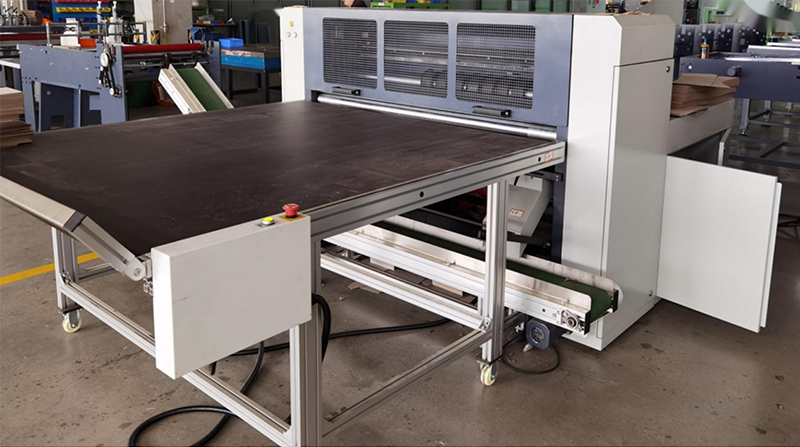

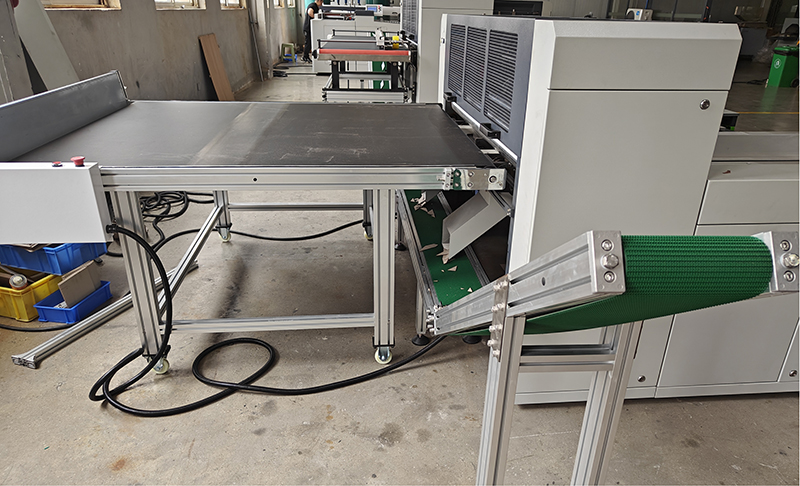

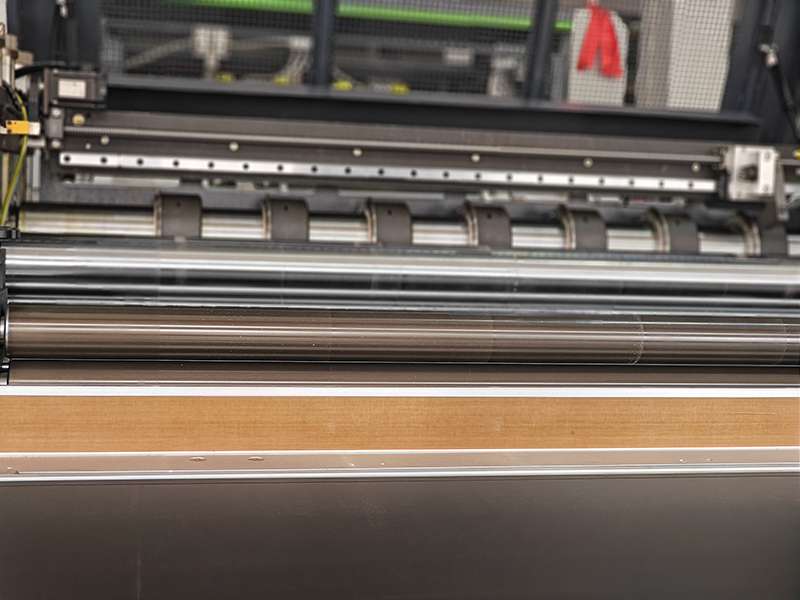

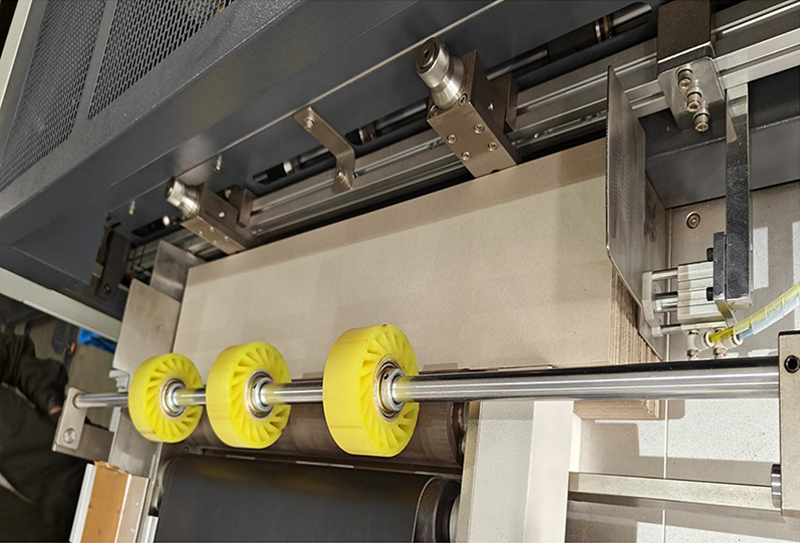

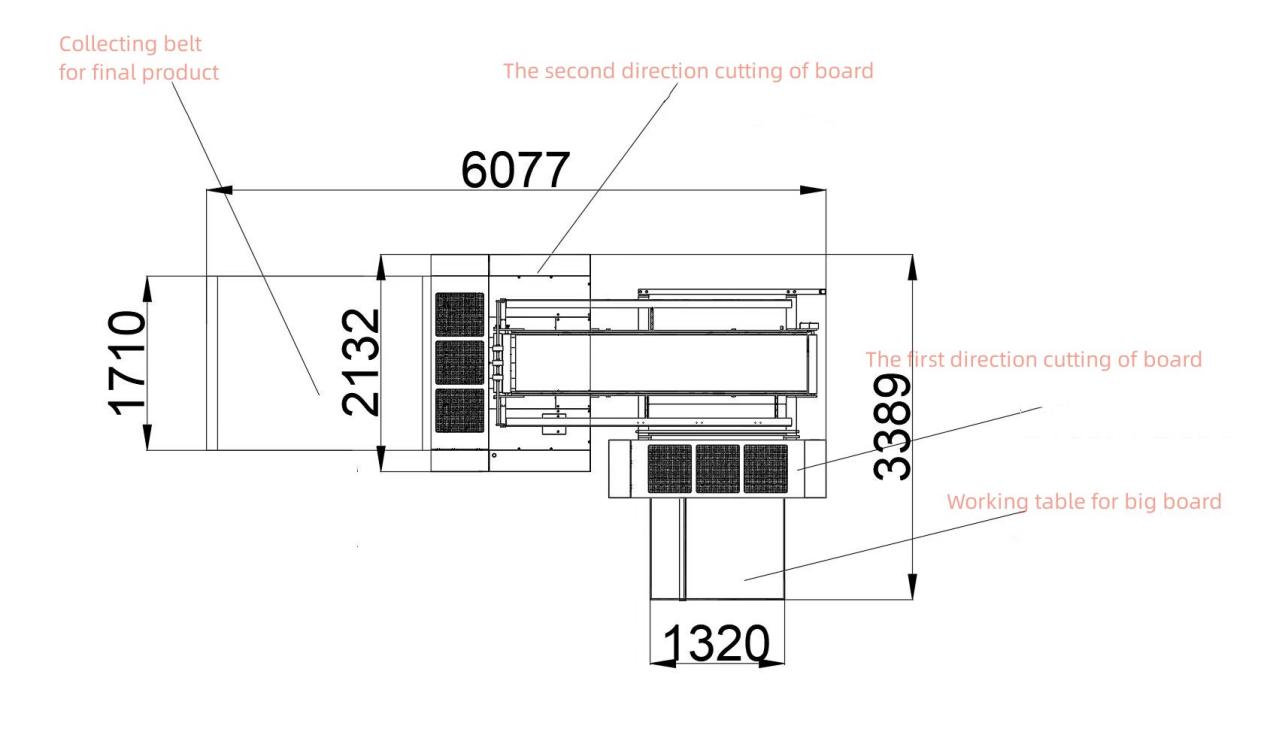

Feeding partChange the board direction through Convey beltCutting  knifeAutomatic collecting part for 2nd step cutting

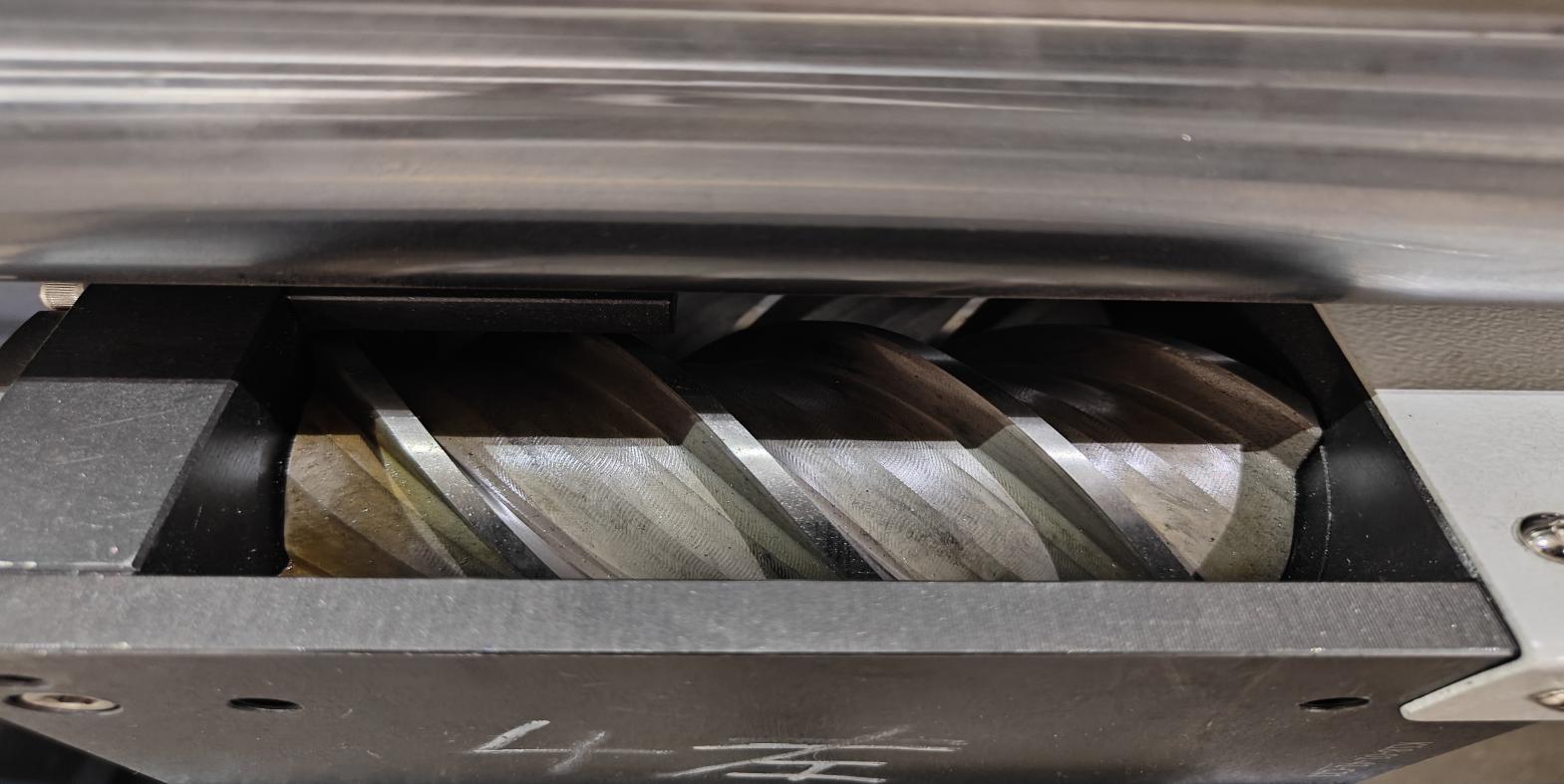

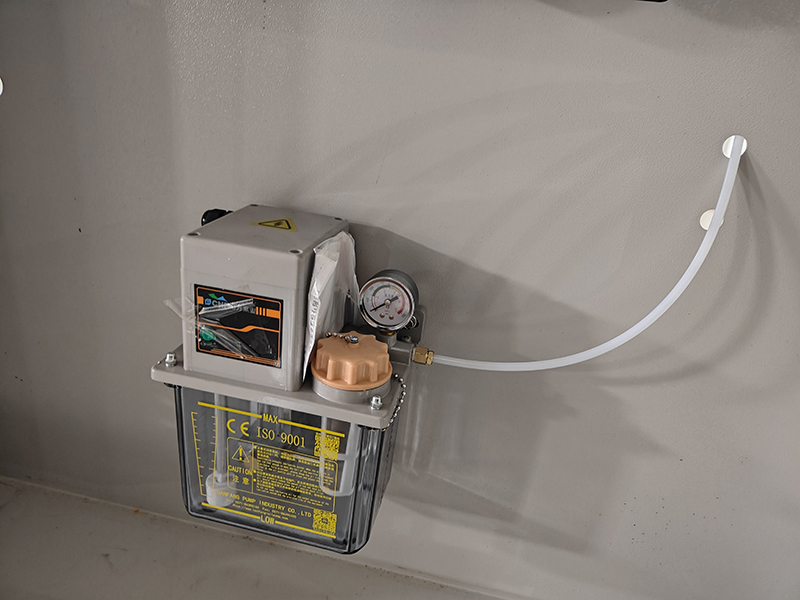

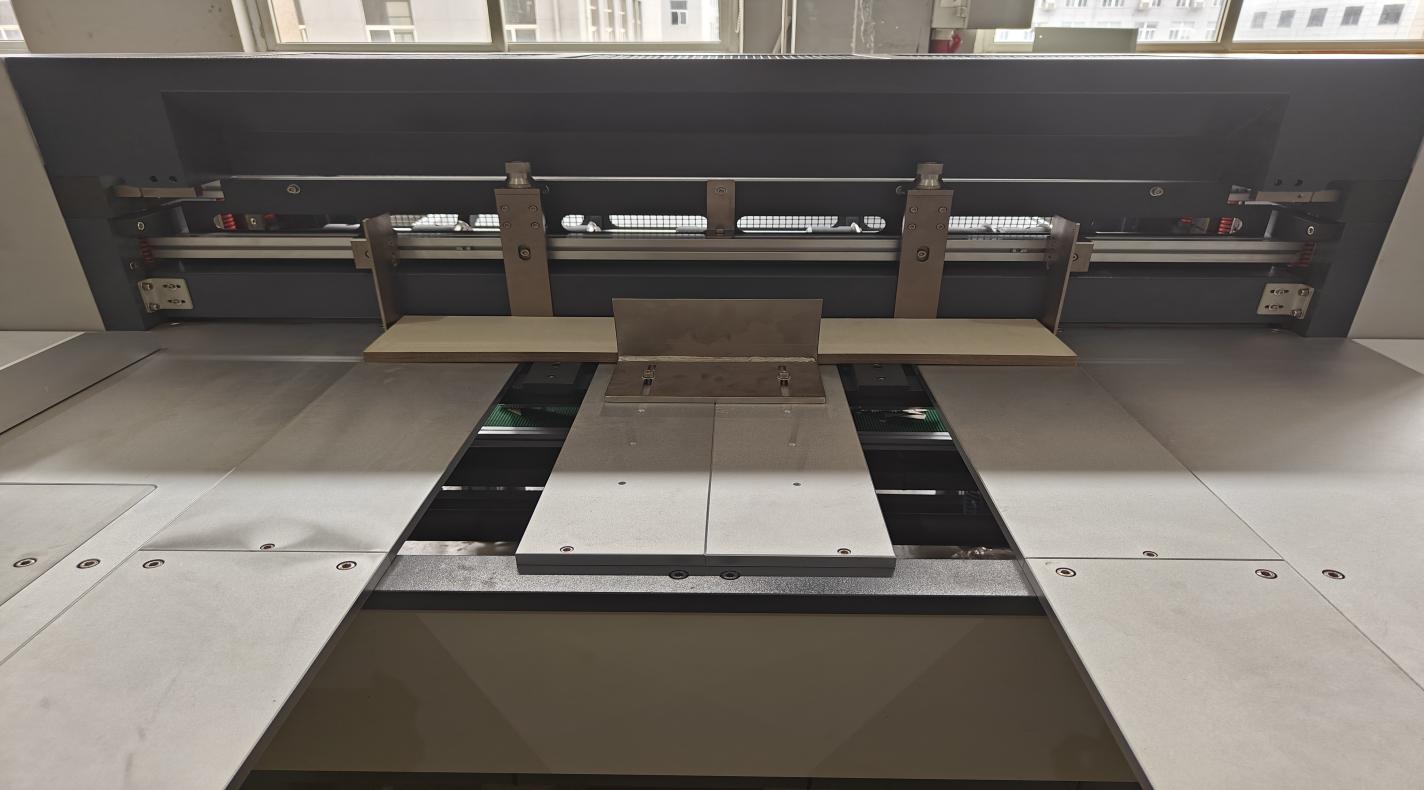

Automatic Scrap discharge through spiral knifeAutomatic oiling deviceCollecting holder for productScrap Discharge through convey belt



FAQ

Q1： Are you a factory or trade company?
A： We have our own factory, which located in Wuxi, with GRS, BSCl and SEDEX audit for over 5 years. We can provide OEM service including custom size and logo design.
Q2： How about quality control of your company?
A： We pay great attention on quality control from the beginning to the end,and our QC department will inspect all goods strictly before shipment delivery.Third party inspection is welcome.
Q3： When is your delivery time?
A： Within 30 days after ordering.
Q4：Is it all right to make customer brand name?
A： Yes, OEM is welcome if the quantity above the MOQ.
Q5： Where is your loading port?
A： Shanghai, China.
Q6：Do you supply free samples?
A：Yes, free stock samples will be available, but shipping cost will be covered by customers.Please contact us to check shipping cost according to customer's address.
