Box Folding With Glue

This machine adopts servo control system,programmable PLC program control system,photoelectric tracking,Swiss Roabtech hot melt adhesive spraying system, touch screen man-machine interface control system,integrated machine electrical to realize automatic paper feeding, glue spraying, folding and the wrapping action is completed at one time. Mainly suitable for 300-450 ivory board, Kraft paper, B/E/F corrugated paper, and other packaging materials. It is widely used in food, cosmetics, clothing, stationery, toys, fruits, wine boxes,daily necessities, health products, etc.


15632711370
15632711370
info@fentimachine.com
CONTACT US
MESSAGE
PRODUCT DESCRIPTION

Introduction:

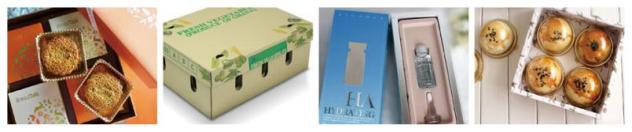

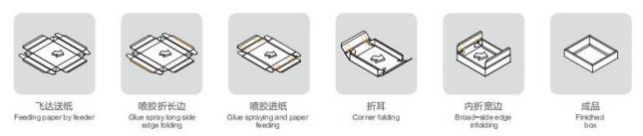

This machine adopts servo control system,programmable PLC program control system,photoelectric tracking,Swiss Roabtech hot melt adhesive spraying system, touch screen man-machine interface control system,integrated machine electrical to realize automatic paper feeding, glue spraying, folding and the wrapping action is completed at one time. Mainly suitable for 300-450 ivory board, Kraft paper, B/E/F corrugated paper, and other packaging materials. It is widely used in food, cosmetics, clothing, stationery, toys, fruits, wine boxes,daily necessities, health products, etc.




Technical Parameters:

Paper typeCorrugated board single wallCorrugated board double wallIvory board single wallIvory board double wall
Paper size



Length(A)250-740mm280-740mm250-640mm280-640mm
Width(B)220-620mm314-640mm220-540mm314-540mm

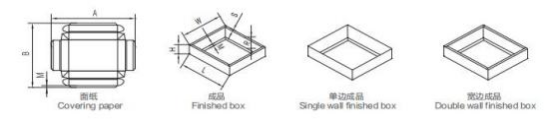

Box size
L120-550mm120-430mm120-350mm120-350mm
W120-415mm130-310mm120-260mm130-260mm
H25-130mm35-70mm25-80mm35-70mm
Inner Edge folding20-80mm35-70mm20-80mm35-70mm
Width of folding edge6mm10-15mm/6-10mm
M(Flanging)8-15mm12-15mm/12-15mm
Paper thicknessB//E/FE/F300-450g/㎡300-450g/㎡


Speed1800-2500pcs/hour
Height of Paper stockpile200mm
Load bearing of cardboard laydown platform20kg
Power380V/50HZ
Electric power10KW
Air supply150L/min 0.6Mpa
Glue tank capacity8L
Net weight1650 KG
Machine size4000*1500*2200mm

FAQ

Q1： Are you a factory or trade company?
A： We have our own factory, which located in Wuxi, with GRS, BSCl and SEDEX audit for over 5 years. We can provide OEM service including custom size and logo design.
Q2： How about quality control of your company?
A： We pay great attention on quality control from the beginning to the end,and our QC department will inspect all goods strictly before shipment delivery.Third party inspection is welcome.
Q3： When is your delivery time?
A： Within 30 days after ordering.
Q4：Is it all right to make customer brand name?
A： Yes, OEM is welcome if the quantity above the MOQ.
Q5： Where is your loading port?
A： Shanghai, China.
Q6：Do you supply free samples?
A：Yes, free stock samples will be available, but shipping cost will be covered by customers.Please contact us to check shipping cost according to customer's address.
