Gift Box making Forming Wrapping machine

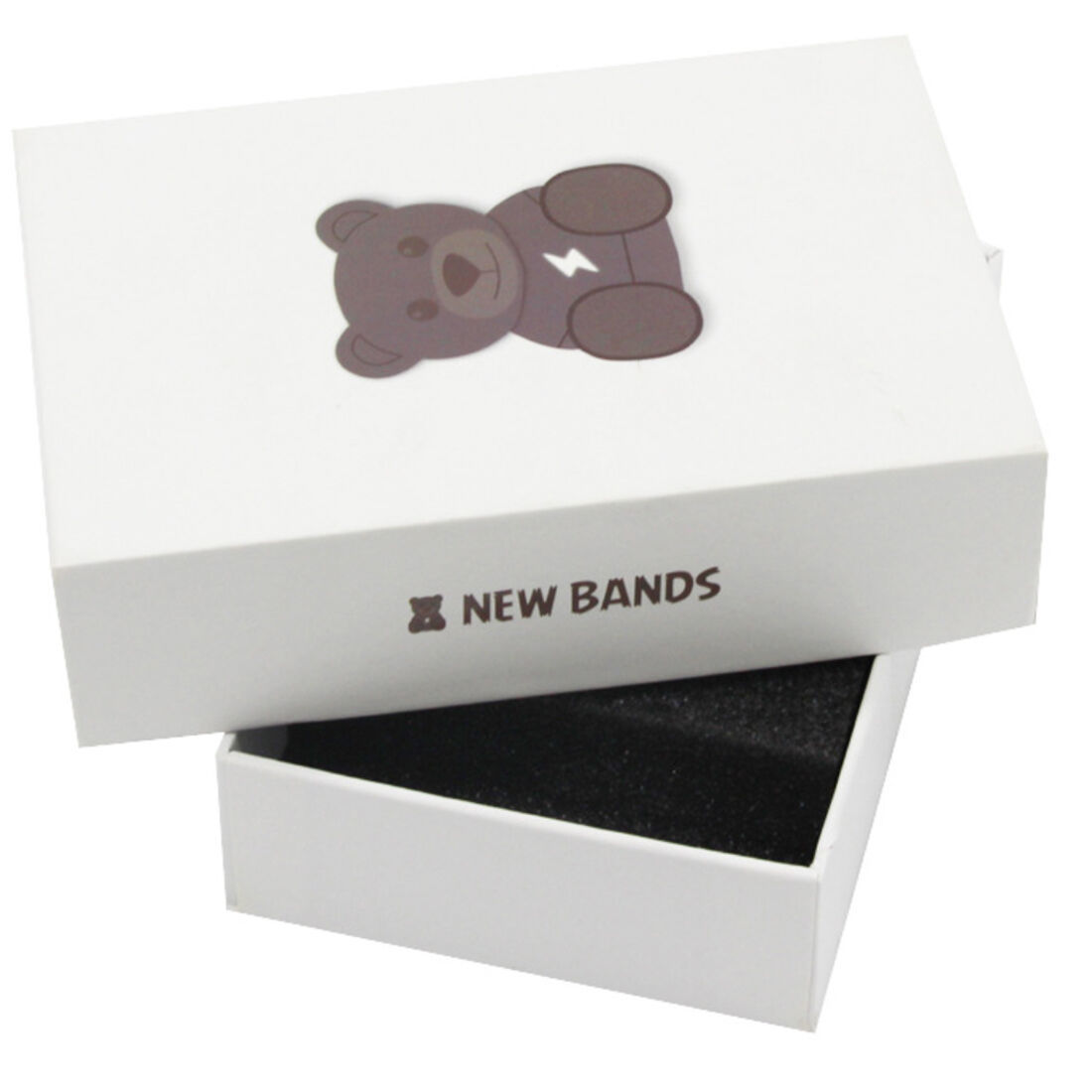

This semi auto box wrapping machine with servo automatic rigid paper box forming machine is the ideal processing equipment rigid box, box. First, Inner box bottom paste with surface paper, then fix the product on the mold of the forming machine by hand, different size box with different mod, then automatic four side pasting, folding, and bubble pressing. Hardcover box can greatly improve the production efficiency.



15632711370
15632711370
info@fentimachine.com
CONTACT US
MESSAGE
PRODUCT DESCRIPTION
Features:

1.Machine with servo pneumatic, PLC control.

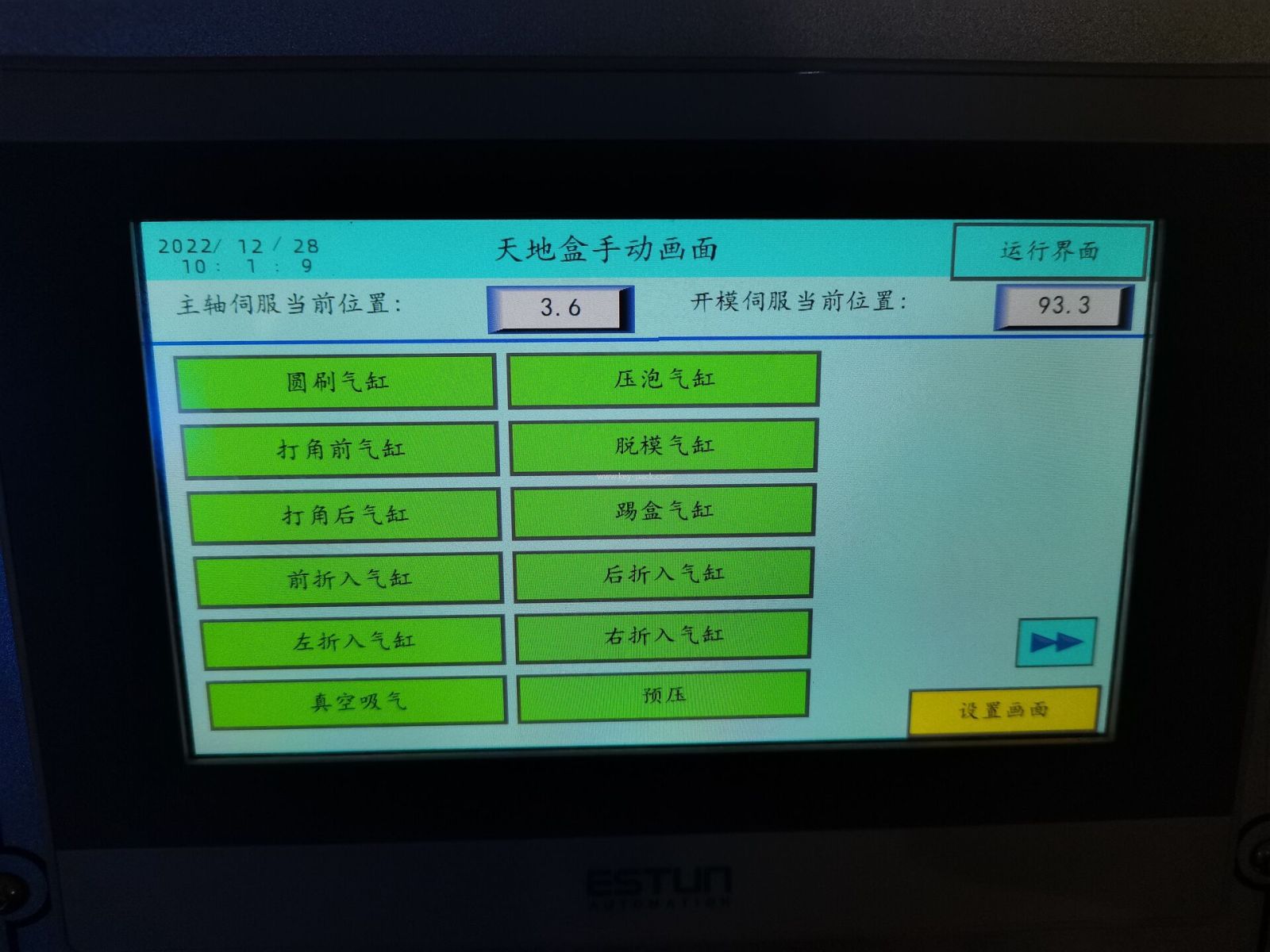

2.Machine is debugged by man-machine interface is simple and easy to adjust the selection.

3.Machine all control parts adopt international high-end brands, low failure, high precision.

4.Machine with touch the emergency stop switch, such as an emergency press automatic stop.


Technical Parameters:

Model Name:KP-540
Box max size:500*400*150mm(L*W*H)
Box min size:60*60*10mm(L*W*H)
Edge folding depth:10-80mm
Speed:15-25pcs/min
Power:2.5kw
Machine size:1000*1300*2300mm
Weight:800 kgs

More Details:

Forming PartsThis parts can achieve several actions, pasting the four side sheet, folding corner, front and hind folding, pressing, left and right folding, pressing and then separated box output.Each actions finished by the cylinder and also can setting the action lasting time, which are quick and high precision.
PastingFour round brush insure pasting cover papers on the square box four sides, especially some box deep folding or with high height.
MoldPlastic or wood material for oprtion which can be make mold


VIDEO


FAQ

Q1： Are you a factory or trade company?
A： We have our own factory, which located in Wuxi, with GRS, BSCl and SEDEX audit for over 5 years. We can provide OEM service including custom size and logo design.
Q2： How about quality control of your company?
A： We pay great attention on quality control from the beginning to the end,and our QC department will inspect all goods strictly before shipment delivery.Third party inspection is welcome.
Q3： When is your delivery time?
A： Within 30 days after ordering.
Q4：Is it all right to make customer brand name?
A： Yes, OEM is welcome if the quantity above the MOQ.
Q5： Where is your loading port?
A： Shanghai, China.
Q6：Do you supply free samples?
A：Yes, free stock samples will be available, but shipping cost will be covered by customers.Please contact us to check shipping cost according to customer's address.
